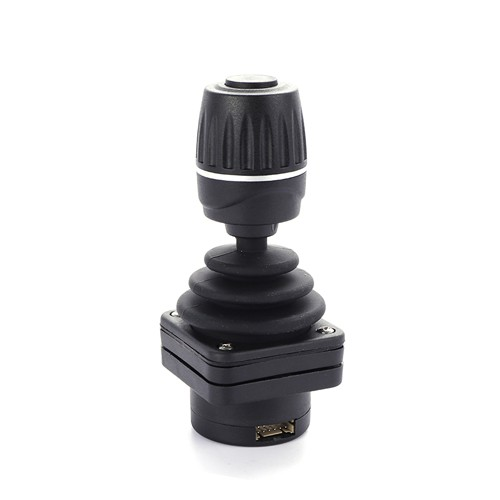

A single axis joystick is a fundamental input device that allows for control along one linear direction. In contrast to multi - axis joysticks which manage movement in two or more directions (such as the X and Y axes in a typical joystick used for gaming or industrial control), the single axis variant simplifies operation to a single dimension. This makes it particularly useful in applications where precise control in one direction is required.

1.The Spring Return Mechanism: How It Works

The spring return mechanism is an integral part of many single axis joysticks. When the joystick is in its neutral position, the spring is in a relaxed state. As the user applies force to move the joystick in either direction along its single axis, the spring compresses or stretches.This deformation of the spring stores potential energy.Once the user releases the joystick, the potential energy stored in the spring is converted back into kinetic energy, causing the joystick to return to its original neutral position. This automatic return feature is highly beneficial as it provides a quick reset for the control system.

2.Advantages of the Spring Return Mechanism

Safety and Precision

The spring return mechanism enhances safety in various applications. In industrial settings, if an operator accidentally lets go of the joystick during operation, the immediate return to the neutral position can prevent unwanted movement of machinery. This is crucial in preventing accidents and damage to equipment.

Moreover, it contributes to precision control. Since the joystick always returns to a known neutral position, it becomes easier for the operator to make repeated and accurate adjustments. For example, in a 3D printer that uses a single axis joystick for adjusting the height of the print head, the spring return ensures that each time the operator makes a new height adjustment, they start from a consistent reference point.

User - Friendliness

From a user - experience perspective, the spring return mechanism is highly user - friendly. It requires minimal effort from the user to reset the joystick, reducing fatigue during extended use. In a wheelchair with a single axis joystick for controlling forward and backward movement, the spring return allows the user to easily stop the chair and have the joystick ready for the next movement command without having to manually reposition it.

3.Applications of Single Axis Joysticks with Spring Return Mechanism

Industrial Applications

In manufacturing plants, single axis joysticks with spring return are used in material handling equipment such as cranes and forklifts. They enable operators to precisely control the vertical movement of loads, ensuring safe and efficient lifting and lowering operations. The spring return mechanism helps in quickly stopping the load at the desired height and getting ready for the next task.

Medical and Rehabilitation

As mentioned earlier, in the medical field, these joysticks are used in equipment like patient - adjustable beds and rehabilitation devices. For patients undergoing physical therapy, a single axis joystick with spring return on a rehabilitation machine can be used to control the intensity of an exercise, such as the resistance level on a leg - press machine. The easy - to - use nature of the joystick, combined with the automatic return feature, makes it suitable for patients with limited mobility or dexterity.

Shanghai Chengong electrical control Co.,Ltd offers a range of high - quality single axis joysticks with spring return mechanisms. Their products are designed to meet the diverse needs of various industries, ensuring reliability, precision, and user - friendliness. Whether it's for industrial automation or medical equipment, Shanghai Chengong electrical control Co.,Ltd has the expertise to provide suitable solutions.
